Föckersperger cable drum rack CDR 280

Föckersperger cable drum rack CDR 280 for transportation of a cable drum up to 2.80 m diameter and 2.10 m width with Föckersperger safety system.

Technical data:

Load capacity: 6,000 kg
Weight: 330 kg
Height: 1,610 mm
Width: 2,390 mm
Length: 1,600 mm

Equipment:

cable drum rack
safety shaft suspension with self-guidance and crane shackle
shaft made of aluminum Ø 70mm
stepped bushings
clamping shells
lashing eyes

Options:

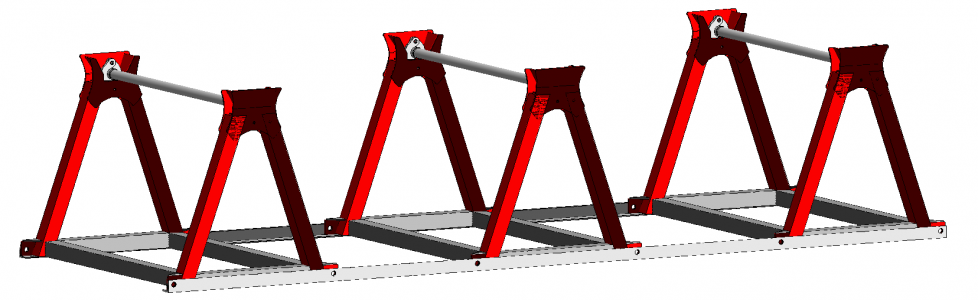

Rail frame for individual positioning of up to
three cable drum racks on the trailer
